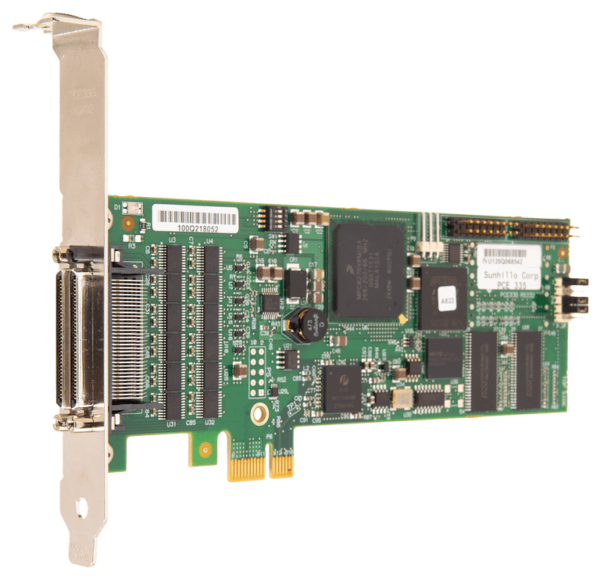

Four Port Synchronous Serial Communications Adapter
- Multipurpose Intelligent PCI Express® Synchronous Serial Communications Adapter
- Four High-Speed Ports Capable of Sustaining 2 Mbps per Port
- Freescale™ MPC8270 PowerQUICC II® Processor
- 128 MB Dedicated Processor DRAM Memory
Product Description
Performance of the Serial Communications Adapter
- Four ports @ 2 Mbps bi-directional • Simultaneously sustained 8 Mbps maximum line speed
Processor
- 266 MHz Freescale™ MPC8270 Motorola PowerQUICC II
Memory
- 128 MB shared SDRAM
- 32 MB Application Flash
Protocol Support
- Radar, TADIL-B, HDLC, X.25, Frame Relay, Async, and SBSI
Agency Certifications
- FCC Class A
- CE
- EN 60950-1
Electrical Interfaces
- RS232
- RS422/RS449/E1A530
- RS232 Console Port
- PCI Express x1 Lane
Compliance
- PCI Express revision 1.0
- All currently applicable ANSI/ISO standards
- RoHS
MTBF
- PT-PCE335-12204: 358,644 hours per Bellcore SR-NWT-000332 Issue 1
- PT-PCE335-12180: 387,711 hours per Bellcore SR-NWT-000332 Issue 1
Power
- RS232: Typical 2.4 W (0.200 A @ 12 V) 1.8 W (0.360 A @ 3.3 V)
- RS422: Typical 2.6 W (0.200 A @ 12 V) 2.97 W (0.900 A @ 3.3 V)
Dimensions
- 68.90 mm x 167.65 mm (2.7 in. x 6.6 in.)
(low-profile PCI Express compliant)
Temperature
- Operating: 0 to 50°C (32 to 122°F)
- Non-operating: -20 to 80°C (-4 to 176°F)
