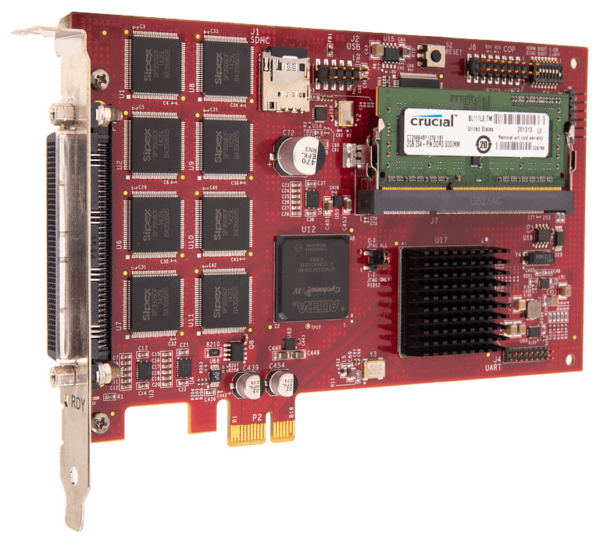

Surveillance Data Distribution and Conversion
- PCI Express based solution for PC’s Workstations, and Servers
- API, Device Drivers, Tools, and Documentation provided
- Interface up to 8 – DB25 Serial Ports
- Synchronous and Asynchronous Protocols
Product Description
Surveillance Data Distribution and Conversion
Serial Port Controls
- RS-232 (V.28), RS-422, X.21 (V.11), V35 (V.35 &V.28), EIA-530A (V.10 & V.11), RS-449/V.36 (V.10 &V.11), RS-485
Supported OS
- Linux, CentOS, Fedora, Ubuntu, AIX 4+up, Solaris, Win7+up (available by customer request)
Protocols
- CDRADAR (13-bit radar), TPS-75 Radar (9-bit radar), Asynchronous, Bi-Sync, Interfacility, HDLC Transparent, HDLC DTE/DCE, HDLC ADCCP/ADCCP_P
Clock Sources
- DCE, DTE, Split Clock, Unit can generate and/or receive clock on each port
Architecture Features
- Freescale PowerPC P1012 processor, QUICC Engine, and 4 FPGA-based Z85230 UARTs
Agency Certifications
- UL 60950
- ROHS – EU Directive 2002/95/EC
Power
- Total Wattage 5.788
Dimensions
- Standard Height PCI Express Bracket
- Weight: < 1 lb
Max Data Rate
- 2.0 Mbps
Max Data Distance
- 150 feet (RS-232), 4000 feet (RS-422/485)
Temperature / Humidity / Altitude
- Operating: 50 to 104°F (10 to 40°C)
- Non-operating: –58 to 140°F (–50 to 60°F)
- Humidity Operating: 10 to 80%(RH non-condensing)
- Humidity Non-operating: 0-100% (condensing)
- Altitude Operating: Low Pressure Operation/Air, Carriage -300’ to +10,000’
- Altitude Non-operating: Low Pressure Storage/Air, Carriage 0’ to +50,000’
